The semiconductor industry is evolving rapidly, driven by demand for smaller, faster, and more efficient electronic devices. At the core of this transformation lies precision manufacturing – and one critical piece of equipment enabling this is the wafer mounter.
A wafer mounter is used during the back-end semiconductor process to attach wafers to dicing tape and ring frames (the so called work piece), ensuring stability during cutting and packaging. As wafer sizes increase and thickness decreases, the need for high-precision, contamination-free mounting has become essential.
LINTEC Advanced Technologies (Europe) GmbH, headquartered in Munich, is a recognized Tier-1 supplier, specializing in equipment for semiconductor back-end production, e.g. wafer mounters and adhesive tapes.
LINTEC Corporation, together with its European subsidiary in Munich, continues to achieve strong success, supported by its influence on R&D and its service across the European market, and is helping to shape industry expectations in this high-stakes environment.
This article provides a technical deep dive into the LINTEC wafer mounter portfolio, analysing why models like the RAD-2500 series remain the top choice for IDMs (Integrated Device Manufacturers) and OSATs (Outsourced Semiconductor Assembly and Test) globally.
Wafer Mounting Technology
Historically, wafer mounting was a manual process prone to inconsistencies such as air bubbles, uneven tension, and contamination. However, with the rise of:
- AI chips
- MEMS devices
- Power semiconductors (SiC, GaN)
- manufacturers now require ultra-clean, highly controlled processes.
Modern wafer mounting machines, especially those from LINTEC, integrate:
- Semi- and fully-automated handling systems
- Non-contact wafer processing
- Tape tension control technologies
- Vacuum-mounting capability
- Automation & communication: SECS/GEM & OHT capability
Wafer Mounting Machine Technology Explained
A wafer mounter is designed to:
- Mount wafers to adhesive dicing tape in combination with a ring-frame
- Prepare wafers for dicing and further processing
- Ensure uniform tension, bubble-free mounting and proper alignment
Key Components
- Tape mounting system, using either vacuum-mounting or standard press-roller technology
- Wafer handling unit (robotic or manual)
- Full-contact or non-contact wafer tables
- Alignment system (optical or sensor-based)
- Tape-tension control mechanism
- Heating systems
LINTEC machines use advanced systems like Tape Tension Control (TTC), which ensures optimal tape application and prevents generation and / or inclusion of air voids.
LINTEC Munich: The Engineering Behind the RAD Series
While LINTEC Corporation is headquartered in Japan, its influence in the European market is profound. The “Munich” reference in industry parlance often relates to the stringent quality standards and automation levels required by European automotive fabs.
LINTEC’s flagship solutions are the RAD-2500 series (specifically the F/8 and F/12 models). These are not just wafer mounting systems; they are fully automated systems designed for high-mix, high-volume and most high-tech environments.

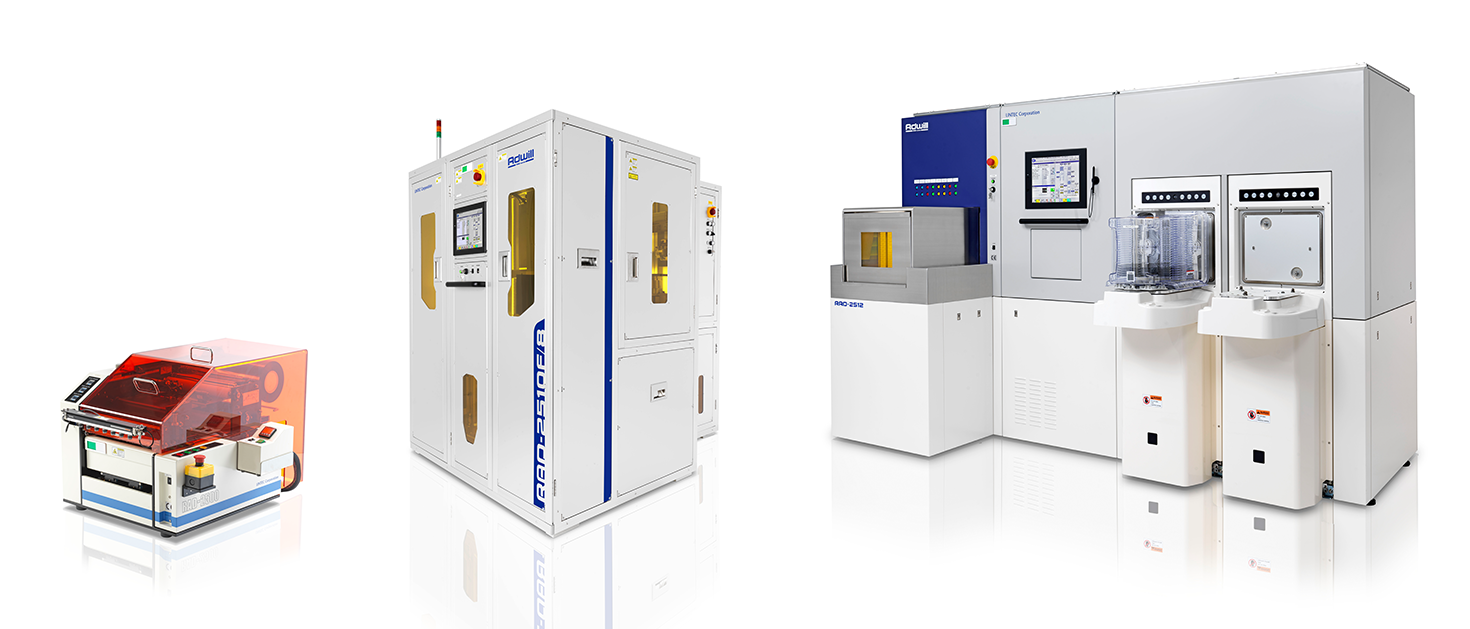

LINTEC Wafer Mounter Line-up
Semi-Automatic Wafer Mounter (RAD-2500m Series)
Ideal for:
- R&D lines
- University and research environments
- Low to medium scale mass-production
Key Features:
- Uses pre-cut dicing tape for safe & easy operation
- Compact footprint for cleanroom efficiency
- TTC system ensures accurate tape application
- Highly reliable and repeatable results
Benefits:
- Cost-effective entry-level solution
- Minimal operator training required
- Reliable for prototyping environments
Fully-Automatic Wafer Mounter (RAD-2510 F/8)
Designed for:
- High-volume manufacturing of wafer sizes from 4” to 8”, specialized in handling of compound materials like Sic or GaN
- Advanced semiconductor fabs
Key Features:
- Throughput of up to 120 wafers/hour
- Non-contact alignment system
- Optional inline pre-cut system for use of roll-type tape
- Vision system for wafer-ID reading and process control
- Full-contact and non-contact wafer-tables
- Standard wafer alignment and optional wafer-alignment using a high-tech camera system
- Host communication system, GEM
Benefits:
- High productivity
- Reduced human error
- Optimized for SiC & GaN wafers
Fully-Automatic Vacuum Wafer Mounter (RAD-2512F/12)
Target applications:
- MEMS
- Power Devices
- TAIKO wafers
- Wafers with delicate topography or backside metallization
Key Features:
- High-precision vacuum mounting
- Non-contact wafer handling
- Advanced inline pre-cut system
- ESD protection features
- Optional capability for OHT and AGV
- Host communication system, GEM
Benefits:
- Pressure-free mounting
- Handling with minimum contact to protect delicate surfaces, membranes and metallization
- Enhances yield in high-end applications
Fully-Automatic Multifunction Wafer Mounter (RAD-2510F/12Sa)
Best for:
- Designed for ultra-thin wafer processing
Key Features:
- All-in-one tool, combines UV-irradiation, mounting, and peeling
- Reduces unnecessary wafer-handling contact significantly
- Increases throughput by ~60% compared to other equipment / process concepts
- Supports DBG (Dicing Before Grinding)
Benefits:
- All-in-one Mounter-Peeler
- Minimizes wafer damage through minimized wafer-handling contact
- Saves production time
- Ideal for advanced DBG / SDBG production
Core Advantages of LINTEC Wafer Mounters
1. High Precision & Reliability
LINTEC’s systems are engineered for consistent mounting accuracy, ensuring high yield rates in semiconductor production.
2. Advanced Automation
From semi-automatic to fully-automatic systems, manufacturers can scale operations efficiently.
3. Non-Contact Handling
Critical for sensitive wafers, reducing physical damage and contamination.
4. Compact Footprint
Designed for cleanroom environments where space optimization is essential.
5. Customizable to an extreme extent
99% of LINTEC systems in the field are one-of-a-kind and highly customized to customers needs.
People Also Ask
What does a wafer mounter do?
A wafer mounter attaches semiconductor wafers to adhesive tape and ring frames to stabilize them during dicing and processing (wafer + ring frame + tape = workpiece).
Why is tape tension control important?
It prevents air bubbles and ensures uniform tension across the workpiece, which is critical for high-quality chip separation.
What is the difference between semi-automatic and fully automatic wafer mounters?
- Semi-automatic: Operator-assisted, ideal for R&D
- Fully-automatic: High-speed, minimal human intervention, host-communication
Why Choose LINTEC Munich for Wafer Mounters?
LINTEC Advanced Technologies (Europe) GmbH stands out due to:
- Strong European support base in Munich, Dresden and Frankfurt
- Industry-leading R&D and support capability with very short response times
- Local equipment and tape specialists offer tailored “Tape × Equipment” solutions
- Proven reliability, experience and footprint with all major EU semiconductor manufacturers
